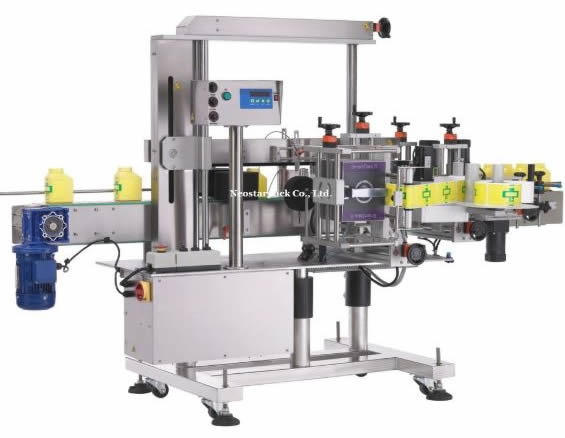

Labeling: 3 Sides Labeler
Model No.LD3055| Speed | 40 PPM * |
| Bottle Size ++ | Dia. 20~100 mm/ Height 25~80mm |
| Label Type + | Non Transparent |
| Label Size ++ | W10~100 x H20~300 mm |
| Label Reel | ID 75 / OD < 300 mm |
| Accuracy | +/-1 mm |
| Power Supply | 110VAC or 220VAC, Single Phase |
| Machine Size | L2100 x W1380 x H1500 mm |
| Machine Weight | 125 kg |
* Subj to Testing ** Subj to Product Types & Sizes *** Customizable + Transparent Subj to Different Sensor Charge ++ Non Standard Sizes Subj to Additional Charge | |
Features
1.Controlled by microprocessor for easy operation.
2.Equipped with emergency button for safety concern.
3.Control labeling progress by LED screen and electronic technical system.
4.Automatic direct system and spacer assures smooth bottle transportation.
5.Durable imported conveyor belt with condensed design can be customized.
6.Corner turning system automatically smoothes label to each side of the bottle.
7.Storage of different sets of parameters prevents the inconvenience of resetting.
8.Made of stainless steel and aluminum alloy for easy maintenance and longevity.
9.Specifically selected sponges flap labels after labeling to make labels adhere perfectly.
10.Passive top belt is driven by motor in accordance with conveyor belt for specific labeling.
11.Label sensor precisely detects the location of labels and product and increases accuracy.
12.Driven by stepping motor and the labeling height and angle can be adjusted by products.
Optional Parts and Accessories
Automatic Feeder
Customized High Precision Fixture
Date Coding Machine
Detection/Rejection Device
Mitsubishi Servo Motor
PLC/HMI with Color Touchscreen
